Pima III Fireplace Pima III Fireplace

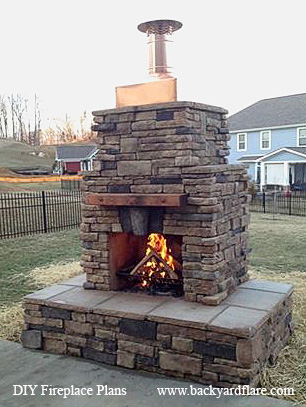

The Pima III

The Pima III fireplace is a great looking outdoor structure that will definitely provide a focal point for your outdoor living space. The seating surface is 16” deep on three sides of the fireplace. An optional protruded mantel gives the fireplace an elegant look. This fireplace design was for the customer who likes the traditional Pima design but needs a scaled down version. It is a shrunken version of the standard Pima fireplace. The overall measurement of the structure is 80” wide, 48” deep, and 72” tall. The firebox measures 32” wide, 24” deep, and 24” tall before the installation of firebrick.



The Pima lll fireplace plan has a total of 26 pages.





Materials

Concrete (cinder) block:

8x8x16 - (97)
8x8x8 - (2)
Cap block - (16)

Additional building materials:

Mortar - 5+ bags
Angle Iron 1 ½ inch
40" - (2)
24" - (2)
Firebrick

Costs

8x8x16 - $1.25 each @ 97= $125.10
8x8x8 - $1.00 each @ 2 = $2.00
8x2x16 Cap block - $1.00 @ 16 = $16.00
Steel Angle Iron - $3/foot @16ft. = $48.00
Mortar - $4.00 each @ 5 bags = $20.00
Firebrick - $1.60 @ 86 = $137.60
Approx. rough build total = $348.70

More Plans

Only $39.99
