Sedona FieplaceSedona Fireplace

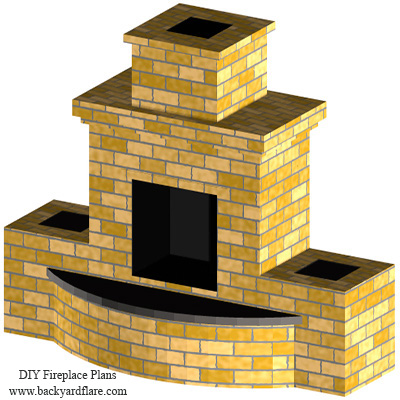

The Sedona

This fireplace is a beautiful design with a 360 degree two stage mantel. The mantels to the sides of the chimney have space enough for candles or other adornment. This design offers an oval seating area approximately 16 inches deep at the center. Planters are built in on the sides of the fireplace giving you a place to plant flowers, bushes, or even small palms. The overall dimensions of this fireplace are 128 inches wide, 48 inches deep, and 80 inches high. The firebox opening measures 32 inches wide, 24 inches deep, and 24 inches high. Extensive block cutting is necessary.



The Sedona fireplace plan has a total of 29 pages.

Materials

Concrete (cinder) block:

8x8x16 – (138)
8x8x8 – (6)
8x4x16 solids – (36)
Cap block – (51)

Additional building materials:

Mortar – 8 bags
Angle Iron 2 inch
40-inch – (2)
24-inch – (2)
Firebrick

Costs

8x8x16 - $1.25 each @ 138 = $172.50
8x8x8 - $1.00 each @ 6 = $6.00
8x4x16 solid - $1.30 @ 36 = $46.80
Cap block - $1.00 @ 51 = $51.00
Angle Iron - $3/foot @12 ft. = $36.00
Mortar - $4.00 @ 5 bags = $20.00
Firebrick - $1.60 @ 93 = $148.80
Approx. rough build total = $481.10

Back to Plans Page

Only $39.99
