Saguaro Fireplace

The Saguaro

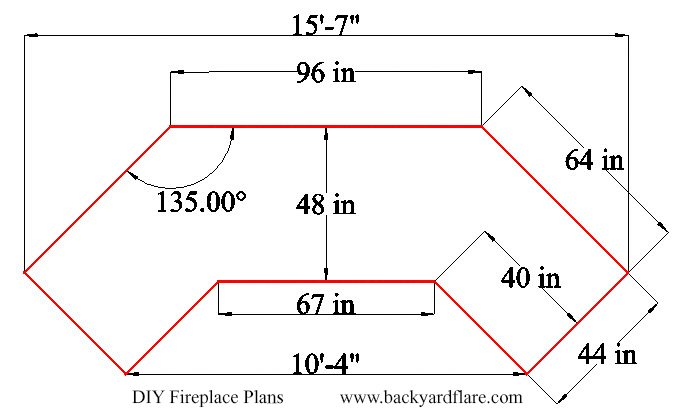

This fireplace is a large beautiful design that will surely dress up any outdoor space and it will demand respect as the main focal point. The seating is three-sided; 16 inches deep in the front and 32 inches deep on the sides. The overall dimensions of this fireplace are 128 inches (10 ½ feet) wide (left to right), 48 inches (4 feet) deep (front to back), and 78 inches (6 ½ feet) high (bottom to top). The firebox opening measures 32 inches wide, 24 inches deep, and 26 inches high. The firebox has an arched top that stands out as a very elegant feature.

The Saguaro fireplace is designed with a 360 degree mantel and large horizontal surfaces to the sides of the chimney. The mantel along with the flared chimney top provides some great focal points. The chimney face is large enough to adorn it with wrought iron decoration, outdoor art, or whatever suits your taste.



The Saguaro fireplace plan has a total of 33 pages.

Materials

Concrete (cinder) block:

8x8x16 – (134)
8x8x8 – (2)
8x4x16 solids – (43)
Cap block – (32)

Additional building materials:

Mortar – 5 bags
Angle Iron 1 ½ inch
24 inch length – (2)
Firebrick

Arch Materials

Cement- 3 bags
Rebar 3 ft.- 2
2x4x8- 4
Plywood 4x8 sheet- 1
Wood Screws/Nails
Metal Flashing

Costs

8x8x16 - $1.25 each @ 134 = $167.50
8x8x8 - $1.00 each @ 2 = $2.00
8x4x16 solid - $1.30 @ 43 = $55.90
Cap block - $1.00 @ 32 = $32.00
Angle Iron - $3/foot @4ft. = $12.00
Mortar - $4.00 @ 5 bags = $20.00
Firebrick - $1.60 @ 93 = $148.80
Cement- $3.00 @3 bags= $9.00
2x4 Wood - $4.00 @ 4= $16.00
4x8 Plywood- $15.00 @ 1= $15.00
Metal Flashing- $10.00 @ 1= $10.00
Rebar- $3.00 @ 2 pieces- $6.00
Approx. rough build total = $494.20
