Pima II Fireplace Pima II Fireplace

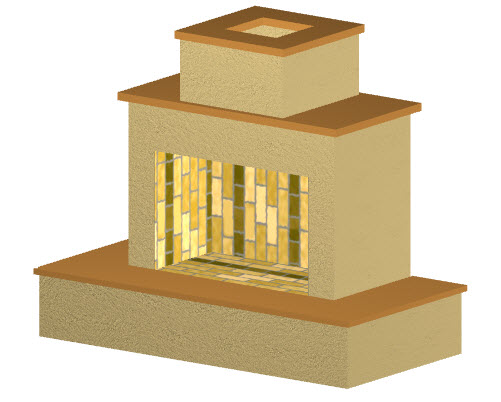

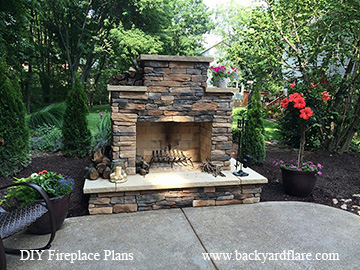

The Pima II

The Pima II fireplace brings a highly sought-after change to the standard Pima design in that the firebox has been made larger. Everything about the fireplace is the same with the exception of this change. The fireplace seating measures 16 inches deep on three sides of the fireplace and is accented with a single-phase mantel, followed by a flared top. The overall measurements from the base are 96 inches wide, 48 inches deep, and 80 inches tall. The firebox measurements equal 48 inches wide, 24 inches deep, and 30 inches tall before the installation of firebrick. This fireplace requires block cutting.



The Pima ll fireplace plan has a total of 29 pages.

Materials

Concrete (cinder) block:

8x8x16 – (120)
8x8x8 – (4)
8x4x16 solids – (33)
Cap block – (41) or (12)

Additional building materials:

Cement – 8 bags
Rebar- 15 feet
Mortor- 6 bags
2 inch Angle Iron
62-inch – (2)
24-inch – (4)
Wood
Firebrick

Costs

8x8x16 - $1.25 each @ 120.00 = $150.00
8x8x8 - $1.00 each @ 4 = $4.00
8x4x16 solid - $1.30 @ 33 = $42.90
Cap block - $1.00 @ 41 = $41.00
2" Angle Iron - $4/foot @18ft. = $72.00
Mortar - $4.00 @ 6 bags = $24.00
Cement- $3.00 @ 8 bags= $24.00
Rebar-$1.00 @ 15ft.= $15.00
Firebrick - $1.60 @ 126 = $201.60
Approx. rough build total = $574.50

Back to Plans Page

Only $39.99
