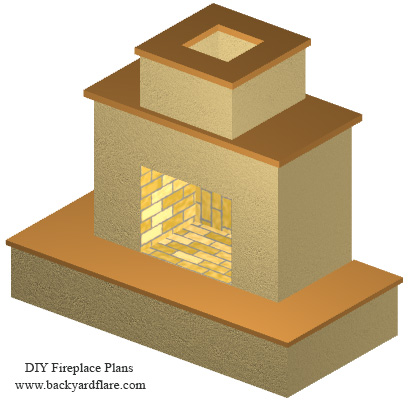

The Pima

The Pima fireplace is a great looking outdoor structure that will definitely provide a focal point for your outdoor living space. The seating surface is 16” deep on three sides of the fireplace. An optional protruded mantel gives the fireplace an elegant look. The overall measurement of the structure is 96” wide, 48” deep, and 72” tall. The firebox measures 32” wide, 24” deep, and 26” tall before the installation of firebrick.









The Pima fireplace plan has a total of 40 pages.


Materials

Concrete (cinder) block:

8x8x16 – (134)
8x8x8 – (3)
8x4x16 solid block – (14)

Additional building materials:

Mortar – 8+ bags (60 lbs.)
Concrete- 8+ bags (60 lbs.)
Angle Iron 2" x 3/16" thickness
24" length – 2
Firebrick - 100 (4.5" x 9" is standard size and thicknesses vary from 1.5" to 2.5". Either thickness is fine to use.
Wood -
2x4 - 10'
2x6 - 10'
2x8 - 4'
Rebar- 50'

Costs

8x8x16 - $1.25 each @ 134 = $167.50
8x8x8 - $1.00 each @ 3 = $3.00

8x4x16 solid block- $1.00 @ 14 = $14.00
Angle Iron - $3/foot @ 4 ft. = $12.00
Mortar - $4.00 @ 8 bags = $32.00
Concrete - $3.00 @ 8 bags = $24.00
Firebrick - $1.60 @ 100 = $160.00
Rebar & Wood = $50.00
Approx. rough build cost = $462.50

Back to Plans Page

Only $39.99
