Flagstaff Fireplace and Oven

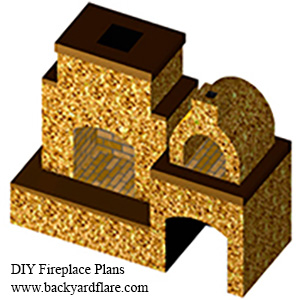

The Flagstaff Fireplace and Oven

The Flagstaff fireplace/oven is a great looking outdoor structure that will definitely provide a focal point for your outdoor living space. The seating surface is 16” deep on two sides of the fireplace. The oven to the right is designed for the incorporation of the Brick Wood Ovens Mattone Barile Oven (NOT THE GRANDE). This construction plan will provide the build instructions for the fireplace and support structure for the oven. In order to complete the entire structure, you will need to download the building instructions for the Mattone Barile Oven from www.brickwoodovens.com. These instructions will take you through the completion of the oven build. The cost of the oven and fireplace is approximate as fire brick and other materials are drastic in cost depending on your geographic area. The overall measurement of the structure is 10’ wide, 48” deep, and 76” tall. The firebox measures 32” wide, 24” deep, and 26” tall at the top of the arch and before the installation of firebrick.



The Flagstaff fireplace & oven plan has a total of 44 pages.

Materials

Concrete (cinder) block:

8x8x16 – (163)
8x8x8 – (6)
Cap block – (17)

Additional building materials:

Concrete - 10+ bags
Mortar – 8+ bags
Refractory Mortar
Angle Iron 2 inch
62 inch length - (2)
40 inch length – (2)
24 inch length – (2)
Rebar- 1/2 inch
30 inch length- (2)
45 inch length- (6)
53 inch length- (2)
60 inch length- (2)
Firebrick
Mattone Barile Oven Form
Vermiculite
Chicken wire
Stucco
Thermal Blanket for Brick Oven

Costs

8x8x16 - $1.25 each @ 163 = $203.75
8x8x8 - $1.00 each @ 6 = $6.00
8x2x16 Cap block - $1.00 @ 17 = $17.00
Steel Angle Iron & Rebar= $40.00
Mortar - $4.00 @ 8 bags = $32.00
Cement - $3.00 @ 10 bags= $30.00
Firebrick - $1.60 @ 108 = $172.80
Mattone Barile Oven and Supplies= $700.00
Approx. rough build total = $1201.55
