Douglas Mini FireplaceDouglas Mini Fireplace

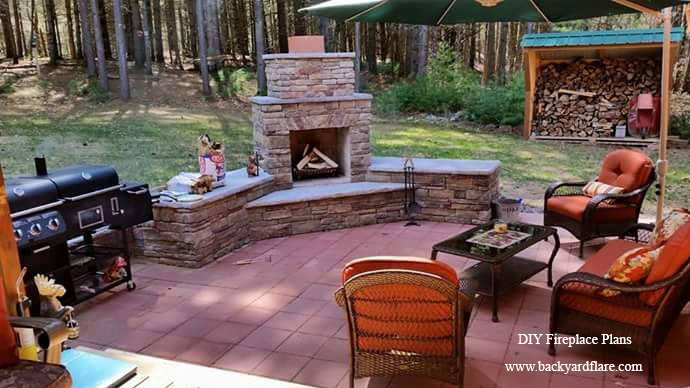

The Douglas Mini

This fireplace is a great corner structure that will surely be the focal point of your outdoor space. This design is a smaller version of the original Douglas and Douglas II and with the raised extensions on both sides, plenty of seating space is available for many to sit around the fire. This design includes a two stage mantel and a matching flared top. The front seating is 16” deep. To the sides of the chimney, there are wide shelves, which are big enough for candles or other decoration and adornment.



The Douglas Mini fireplace plan has a total of 26 pages.

Douglas Mini Dimensions- Click Here-





Materials

Concrete (cinder) block:

8x8x16 – (122)
8x8x8 – (6)
8x4x16 solids - (23)
Cap block – (40) or (31) if you are not covering the seating area with block

Additional building materials:

Mortar – (7 bags)  (50/60 lbs. bags)
2" Angle Iron
46"” length – (2)
24” length – (4)
Firebrick - (100)

Costs

8x8x16 - $1.25 each @ 122 = $152.50
8x8x8 - $1.00 each @ 6 = $6.00
8x3x16 solids - $1.30 @ 23 = $29.90
Cap block - $1.00 @ 40 = $40.00
2” Angle Iron - $3/foot @ 16ft.= $48.00
Mortar - $4.00 each @ 7 bags = $28.00
Firebrick - $1.60 @ 100 = $160.00

Approx. rough build total = $464.40
