Douglas II FireplaceDouglas II Fireplace

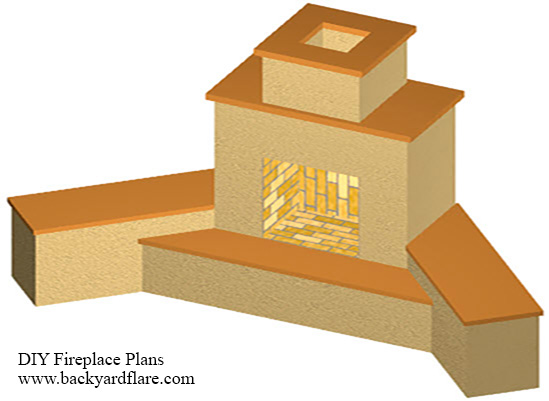

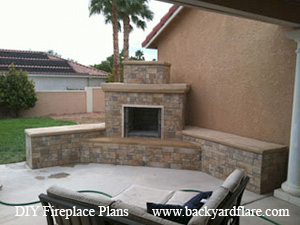

The Douglas II

This fireplace is an exact copy of the original Douglas fireplace design. However, there are added features including a flared two-stage mantel and a matching flared top. This design is a corner unit and it is a very large structure. This design has raised extensions on both sides and plenty of seating space is available for many to sit around the fire. The front seating is 16 inches deep. To the sides of the chimney, there are 16 inch mantel shelves, which are big enough for candles or other decoration and adornment. The overall dimensions of this fireplace are 175 inches wide, 72 inches deep, and 80 inches high. The firebox opening measures 32 inches wide, 24 inches deep, and 24 inches high. This fireplace requires block cutting.

The Douglas II fireplace plan has a total of 41 pages.

Materials

Concrete (cinder) block:

8x8x16 – (164)
8x8x8 – (9)
8x4x16 solid block – (14)

Additional building materials

Mortar – 10+ bags – 60lb
Concrete – 8+ bags – 60lb
Angle Iron 2” x 3/16” thickness
24” length – (2)
Firebrick – (100) 4.5”x9” is standard size and thicknesses vary from 1.5” to 2.5”. Either thickness is fine to use.
Wood -
2x4 – 10’
2x6 – 10’
2x8 – 4’
Rebar – 50’

Costs

8x8x16 block - $1.25 ea.@ 164= $205.00
8x8x8 block - $1.00 ea. @ 9= $9.00
8x4x16 solid block - $1.00 @ 14= $14.00
Steel angle iron - $3/foot @ 4ft= $12.00
Mortar - $4.00 each @ 10 bags= $40.00
Concrete - $3.00 @ 8 bags= $24.00
Firebrick - $1.60 @ 100= $160.00
Rebar and wood = $50.00

Approximate rough build total = $514.00

This design can be built with shorter side seating if your space is limited.

Back to Plans Page

Only $39.99
