Specializing in custom DIY outdoor fireplace, kitchen and grill designs and plans for your outdoor paradise.


Using our exclusive designs and plans, you can have the backyard of your dreams and save thousands.

NEVER PAY CONTRACTOR PRICES AGAIN!



Douglas FireplaceDouglas Fireplace

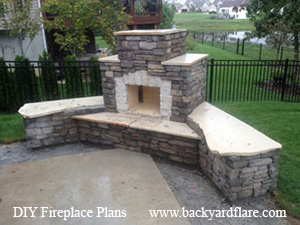

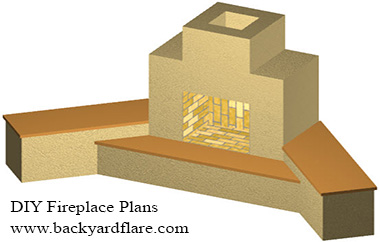

The Douglas

This fireplace is a massive structure that will surely be the focal point of your outdoor space. This design is perfect for building in a corner and with the raised extensions on both sides, plenty of seating space is available for many to sit around the fire. The front seating is 16 inches deep. To the sides of the chimney, there are 16 inch shelves, which are big enough for candles or other decoration and adornment. The overall dimensions of this fireplace are 175 inches wide, 72 inches deep, and 76 inches high. The firebox opening measures 32 inches wide, 24 inches deep, and 24 inches high. This fireplace requires block cutting.



The Douglas fireplace plan has a total of 40 pages.

Douglas Fireplace Dimensions -Click Here-









Materials

Concrete (cinder) block:

8x8x16 – (168)
8x8x8 – (2)
8x4x16 solids – (10)
Cap block – (30)

Additional building materials:

Mortar – 6 bags
Angle Iron 1 ½ inch
40-inch – (2)
24-inch – (2)
Firebrick

Costs

8x8x16 - $1.25 each @ 168 = $210.00
8x8x8 - $1.00 each @ 2 = $2.00
8x4x16 solid - $1.30 @ 10 = $13.00
Cap block - $1.00 @ 30 = $30.00
Angle Iron - $3/foot @16ft. = $48.00
Mortar - $4.00 each @ 6 bags = $24.00
Firebrick - $1.60 @ 85 = $136.00
Approx. rough build total = $463.00

This design can be built with shorter side seating if your space is limited.
